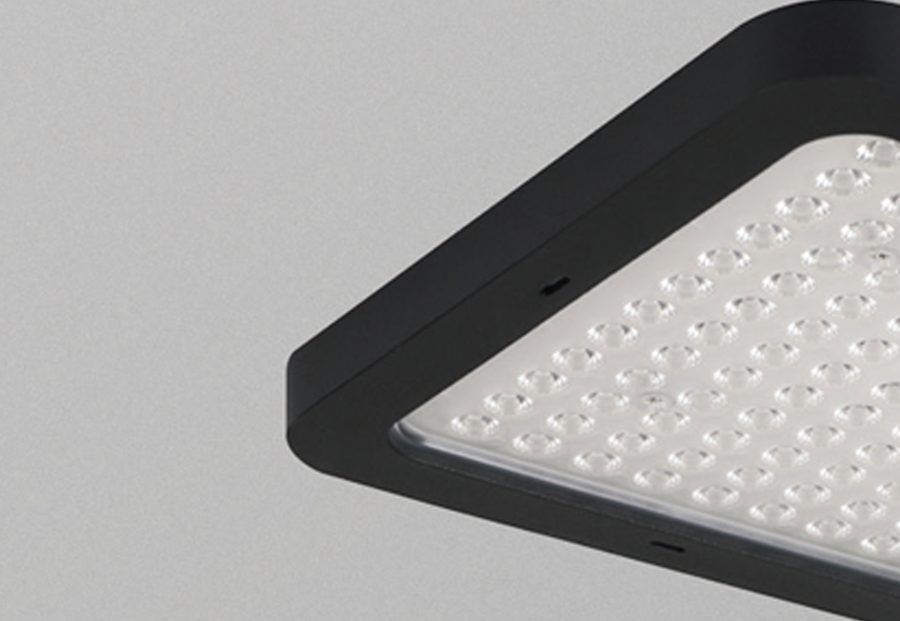

MODA TU

Tunnel Luminaires

– ENEC certified driver
– PF>0.95
– 2 years warranty
– Aluminum body
– +110lm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.

SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.
Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GPG 2210AT SS30 100W SMD LED 3000K 11000 >110 220 270 34 – 1
GPG 2210AT SS40 100W SMD LED 4000K 11000 >110 220 270 34 – 1
GPG 2210AT SS60 100W SMD LED 6500K 11000 >110 220 270 34 – 1
GPG 4520AT SS30 200W SMD LED 3000K 22000 >110 235 455 56 – 1
GPG 4520AT SS40 200W SMD LED 4000K 22000 >110 235 455 56 – 1
GPG 4520AT SS60 200W SMD LED 6500K 22000 >110 235 455 56 – 1
GPG 6730AT SS30 300W SMD LED 3000K 33000 >110 236 670 56 – 1
GPG 6730AT SS40 300W SMD LED 4000K 33000 >110 236 670 56 – 1
GPG 6730AT SS60 300W SMD LED 6500K 33000 >110 236 670 56 – 1

.

Body Aluminum
IP Rating IP66
IK Rating IK08
Flame Protection 650°C
Cable Gland PG9
Cable 3x1mm²
Ral Code 9005
Mounting Type Surface Mounted / Pendant



Light Source Mid Power Led
Reflector –
Lens –
Diffuser Temperli Cam
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 30° – 60° – 120°
Input Voltage 220-240Vac
Frequency 50-60Hz
Class I
System Lifetime >50.000h
Power Factor >0,95
Operating Temperature -20°C / +45°C
Standards EN60598-2-1, EN62262,
EN60529, LM79, LM80
DALI ✓
Emergency Kit ✓
Step DIM –
2 Hours Emergency Kit ✓
3 Hours Emergency Kit ✓
Elektriksel Sınıf –
Radar Sensor ✓

.
