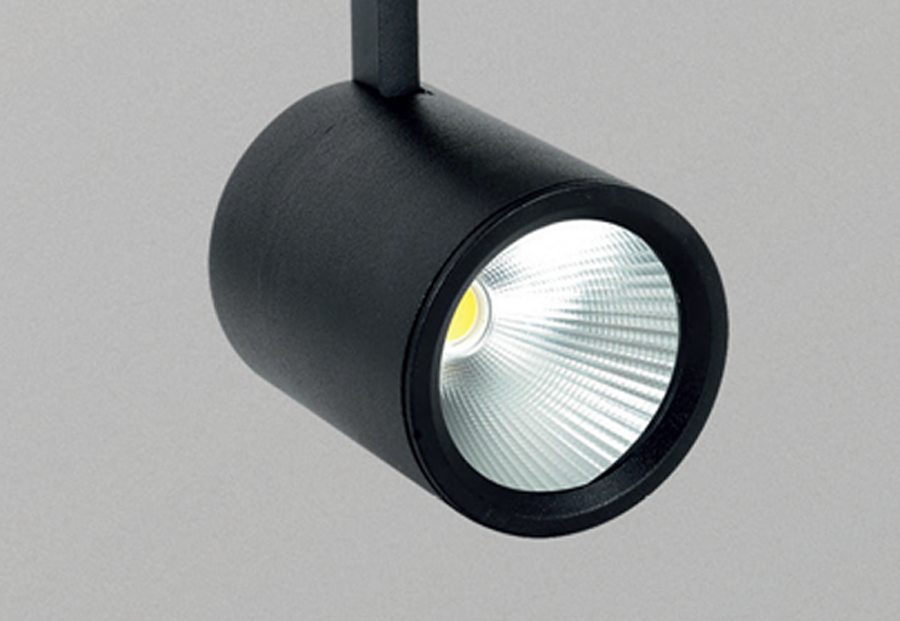

TRAYA

Horizontal Rail Luminaires

– ENEC certified driver
– PF>0.90
– Aluminum body
– +100 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.



SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.
Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GCP 1120RY SS30 20W COB LED 3000K 2000 >100 90 – 117 – 1
GCP 1120RY SS40 20W COB LED 4000K 2000 >100 90 – 117 – 1
GCP 1120RY SS60 20W COB LED 6500K 2000 >100 90 – 117 – 1
GCP 1130RY SS30 30W COB LED 3000K 3000 >100 90 – 117 – 1
GCP 1130RY SS40 30W COB LED 4000K 3000 >100 90 – 117 – 1
GCP 1130RY SS60 30W COB LED 6500K 3000 >100 90 – 117 – 1

.

Body Aluminum
IP Rating IP20-IP40
IK Rating IK03
Flame Protection –
Cable Gland –
Cable –
Ral Code 9005 / 9006 / 9016
Mounting Type Ray
Light Source COB LED
Reflector Alüminyum
Lens –
Diffuser Cam
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 15° / 45° / 75°
Input Voltage 220-240V AC
Frequency 50-60Hz
Class II
System Lifetime >50.000h
Power Factor >0,90
Operating Temperature -20°C / +45°C
Standards EN60598-2-1
DALI –
Emergency Kit –
Step DIM –
2 Hours Emergency Kit –
3 Hours Emergency Kit –
Elektriksel Sınıf –
Radar Sensor –

.
