SPORTS

Sports and Area Floodlights

– ENEC certified driver
– PF>0.90
– 2 years warranty
– Aluminum body
– +110lm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.

SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.

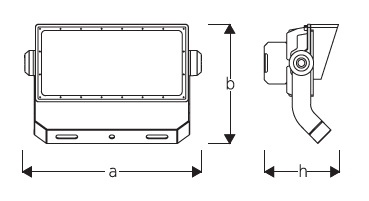

Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GPG 2550SP SS30 500W SMD LED 2800K 55000 >110 540 250 349 – –
GPG 2550SP SS60 500W SMD LED 6500K 55000 >110 540 250 349 – –
GPG 5210SP SS30 1000W SMD LED 2800K 110000 >110 540 520 604 – –
GPG 5210SP SS60 1000W SMD LED 6500K 110000 >110 540 520 604 – –
GPG 7915SP SS30 1500W SMD LED 2800K 165000 >110 540 790 604 – –
GPG 7915SP SS60 1500W SMD LED 6500K 165000 >110 540 790 604 – –
GPG 1020SP SS30 2000W SMD LED 2800K 22000 >110 540 1060 604 – –
GPG 1020SP SS60 2000W SMD LED 6500K 22000 >110 540 1060 604 – –

.

Body Aluminum
IP Rating IP66
IK Rating IK08
Flame Protection 650°C
Cable Gland –
Cable 3×2,5mm²
Ral Code 9016
Mounting Type Surface Mounted



Light Source Mid Power Led
Reflector –
Lens PC, PMMA
Diffuser –
Color Rendering Index (CRI) >80
Color Temperature 2800K / 6500K
Photobiological Risk RG1
Beam Angle 18°/24°/36
Input Voltage 220-240Vac
Frequency 50-60Hz
Class I
System Lifetime >50.000h
Power Factor >0,95
Operating Temperature -20°C / +45°C
Standards EN60598-2-2, EN62262,
EN60529, LM79, LM80
DALI ✓
Emergency Kit –
Step DIM –
2 Hours Emergency Kit –
3 Hours Emergency Kit –
Elektriksel Sınıf I
Radar Sensor –

.
