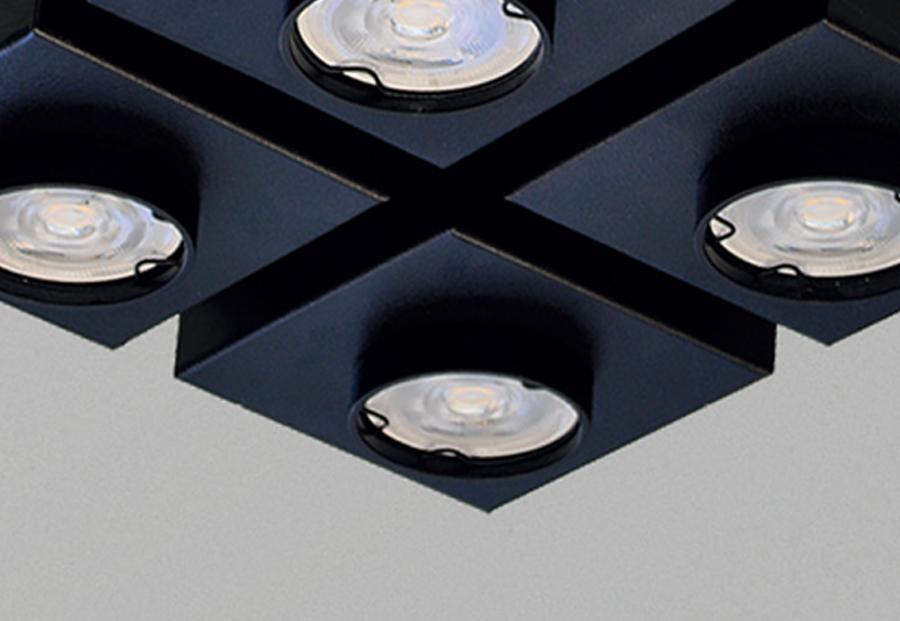

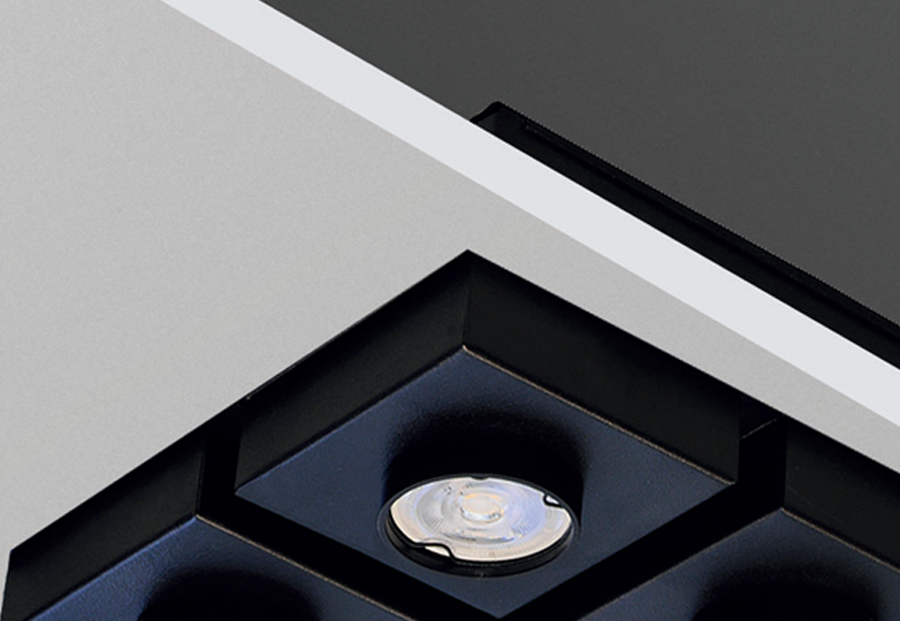

GU10 Socket Honeycomb Ceiling Fixtures

– ENEC certified driver
– PF>0.95
– 5 years warranty
– DKP sheet metal body
– +90 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.

SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-1 Categories: , , Tags: , , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 Lumen Eff.
Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GBP 2224DP PS30 4X4,7W 3000K 1692 >90 200 200 85 – 1
GBP 2224DP PS40 4X4,7W 4000K 1692 >90 200 200 85 – 1
GBP 2224DP PS60 4X4,7W 6500K 1692 >90 200 200 85 – 1

.

Body Sheet Metal
IP Rating IP40
IK Rating IK06
Flame Protection  650°C
Cable Gland –
Cable 3*1mm²
Ral Code 9005, 9006, 9016
Mounting Type Recessed



Light Source GU10 Bulb
Reflector –
Lens –
Diffuser –
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 120°
Input Voltage 220-240V AC
Frequency 50-60Hz
Class I
System Lifetime >50.000 Hours
Power Factor >0.95
Operating Temperature -20°C / +45°C
Standards EN60598-2-2, EN62262, EN60529, LM79, LM80
DALI –
Emergency Kit –
Step DIM –
2 Hours Emergency Kit –
3 Hours Emergency Kit –
Elektriksel Sınıf –
Radar Sensor –

.
