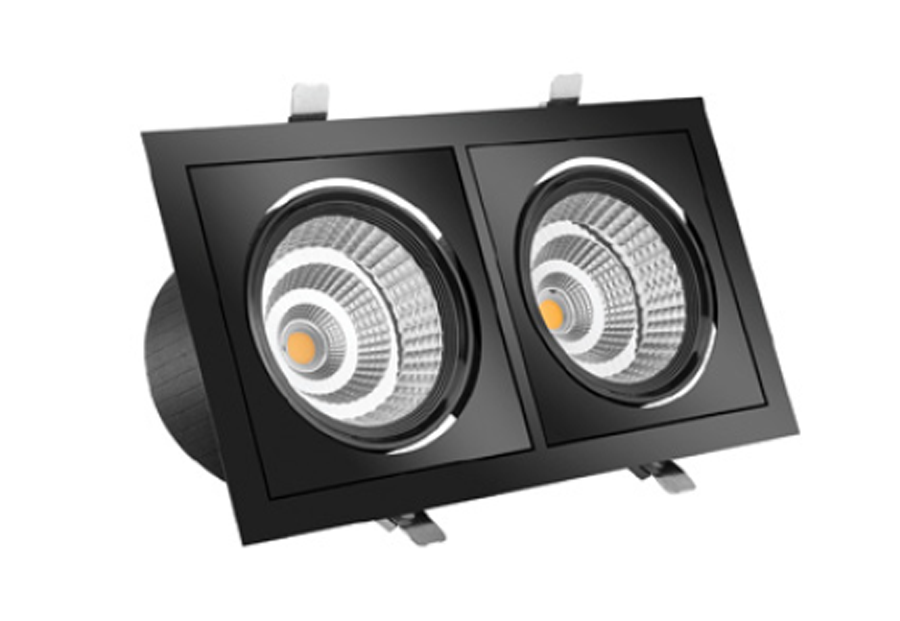

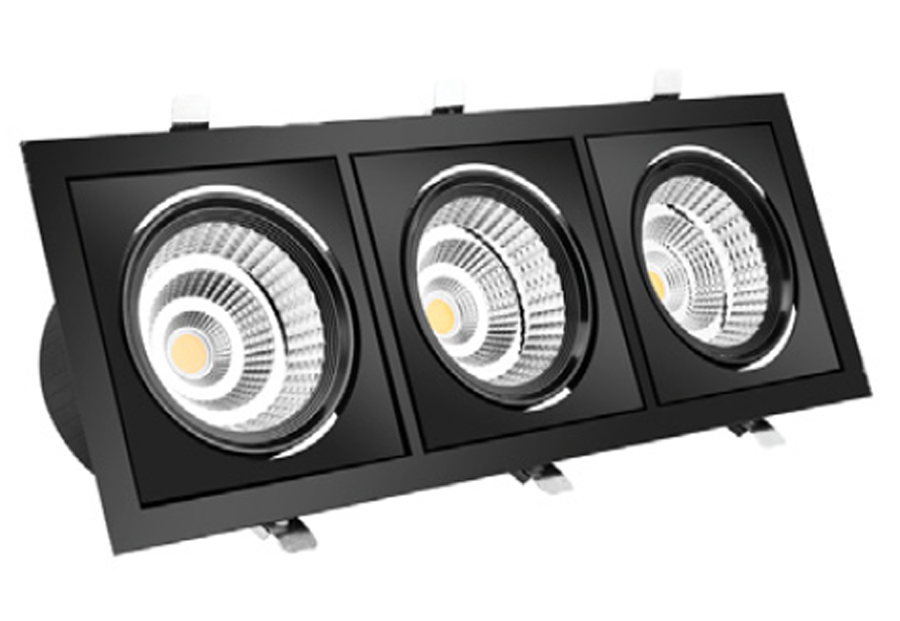

Recessed Modular COB Spotlights

– ENEC certified driver
– PF>0.95
– Aluminum body
– +90 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.



SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Categories: , Tags: , , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.
Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GBP 2220DJ AS30 20W SMD LED 3000K 1800 >90 195 195 110 – 1
GBP 2220DJ AS40 20W SMD LED 4000K 1800 >90 195 195 110 – 1
GBP 2220DJ AS60 20W SMD LED 6500K 1800 >90 195 195 110 – 1
GBP 2440DJ AS30 40W SMD LED 3000K 3600 >90 195 350 110 – 1
GBP 2440DJ AS40 40W SMD LED 4000K 3600 >90 195 350 110 – 1
GBP 2440DJ AS60 40W SMD LED 6500K 3600 >90 195 350 110 – 1
GBP 2660DJ AS30 60W SMD LED 3000K 5400 >90 195 520 110 – 1
GBP 2660DJ AS40 60W SMD LED 4000K 5400 >90 195 520 110 – 1
GBP 2660DJ AS60 60W SMD LED 6500K 5400 >90 195 520 110 – 1

.

Body Aluminum
IP Rating IP40
IK Rating IK06
Flame Protection 650°C
Cable Gland –
Cable 3x1mm²
Ral Code 9005 / 9006 / 9016
Mounting Type Recessed
Light Source COB LED
Reflector Aluminyum
Lens –
Diffuser Şeffaf Cam
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 90°
Input Voltage 220-240V AC
Frequency 50-60Hz
Class I
System Lifetime >50.000h
Power Factor >0,95
Operating Temperature -20°C / +45°C
Standards EN60598-2-2,EN62262,EN60529,
LM79,LM80
DALI ✓
Emergency Kit ✓
Step DIM –
2 Hours Emergency Kit ✓
3 Hours Emergency Kit ✓
Elektriksel Sınıf –
Radar Sensor –

.
