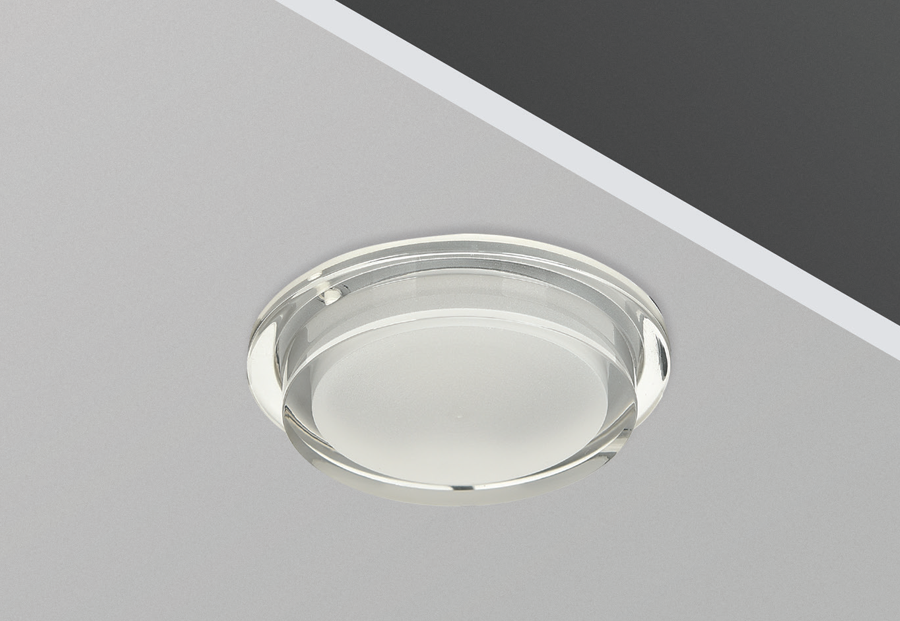

Recessed COB Spotlights

– ENEC certified driver
– PF>0.95
– Aluminum body
– +100 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.



SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.
Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GBP 2512DD AB30 12W COB LED 3000K 1200 >100 86 – 41 – 1
GBP 2512DD AB40 12W COB LED 4000K 1200 >100 86 – 41 – 1
GBP 2512DD AB60 12W COB LED 6500K 1200 >100 86 – 41 – 1
GBP 3018DD AB30 18W COB LED 3000K 1800 >100 110 – 41 – 1
GBP 3018DD AB40 18W COB LED 4000K 1800 >100 110 – 41 – 1
GBP 3018DD AB60 18W COB LED 6500K 1800 >100 110 – 41 – 1
GBP 4024DD AB30 24W COB LED 3000K 2400 >100 135 – 61 – 1
GBP 4024DD AB40 24W COB LED 4000K 2400 >100 135 – 61 – 1
GBP 4024DD AB60 24W COB LED 6500K 2400 >100 135 – 61 – 1
GBP 5030DD AB30 30W COB LED 3000K 3000 >100 160 – 57 – 1
GBP 5030DD AB40 30W COB LED 4000K 3000 >100 160 – 57 – 1
GBP 5030DD AB60 30W COB LED 6500K 3000 >100 160 – 57 – 1

.

Body Aluminum
IP Rating IP40
IK Rating –
Flame Protection 650°C
Cable Gland –
Cable –
Ral Code 9016
Mounting Type Recessed
Light Source COB LED
Reflector –
Lens –
Diffuser PC, PMMA
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle –
Input Voltage 220-240V AC
Frequency 50-60Hz
Class I
System Lifetime >50.000h
Power Factor >0,95
Operating Temperature -20°C / +45°C
Standards EN60598-2-2,EN62262,EN60529,
LM79,LM80
DALI ✓
Emergency Kit ✓
Step DIM –
2 Hours Emergency Kit ✓
3 Hours Emergency Kit ✓
Elektriksel Sınıf –
Radar Sensor –

.
