Waterproof Luminaires

– ENEC certified driver
– PF>0.90
– 2 years warranty
– PC body
– +110lm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.

SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.

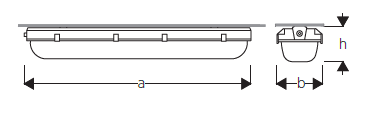

Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GCP 6020WK SG30 20W SMD LED 3000K 2200 >110 660 90 85 – 1
GCP 6020WK SG40 20W SMD LED 4000K 2200 >110 660 90 85 – 1
GCP 6020WK SG60 20W SMD LED 6500K 2200 >110 660 90 85 – 1
GCP 1220WK SG30 20W SMD LED 3000K 2200 >110 1270 90 85 – 1
GCP 1220WK SG40 20W SMD LED 4000K 2200 >110 1270 90 85 – 1
GCP 1220WK SG60 20W SMD LED 6500K 2200 >110 1270 90 85 – 1
GCP 1236WK SG30 36W SMD LED 3000K 3680 >110 1270 90 85 – 1
GCP 1236WK SG40 36W SMD LED 4000K 3680 >110 1270 90 85 – 1
GCP 1236WK SG60 36W SMD LED 6500K 3680 >110 1270 90 85 – 1
GCP 1255WK SG30 55W SMD LED 3000K 6050 >110 1270 90 85 – 1
GCP 1255WK SG40 55W SMD LED 4000K 6050 >110 1270 90 85 – 1
GCP 1255WK SG60 55W SMD LED 6500K 6050 >110 1270 90 85 – 1

.

Body PC
IP Rating IP65
IK Rating IK08
Flame Protection 650°C
Cable Gland PG11
Cable –
Ral Code 9006
Mounting Type Surface Mounted



Light Source Mid Power Led
Reflector –
Lens –
Diffuser PC
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 120°
Input Voltage 220-240Vac
Frequency 50-60Hz
Class I
System Lifetime >50.000h
Power Factor >0,95
Operating Temperature -20°C / +45°C
Standards EN60598-2-1, EN62262,
EN60529, LM79, LM80
DALI ✓
Emergency Kit ✓
Step DIM ✓
2 Hours Emergency Kit ✓
3 Hours Emergency Kit ✓
Elektriksel Sınıf I/II
Radar Sensor ✓

.
