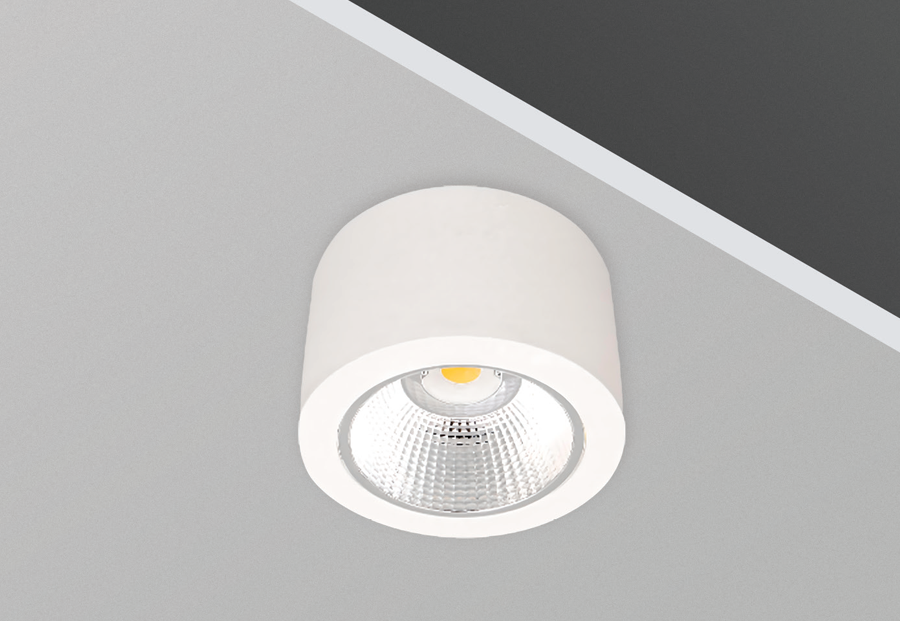

YEDIA SM

Surface Mounted COB Spotlights

– ENEC certified driver
– PF>0.95
– Aluminum body
– +100 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.



SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.

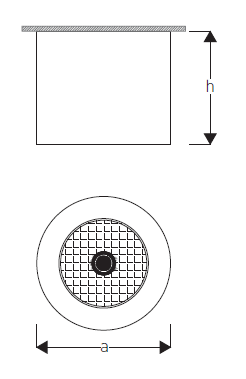

Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GCP 4009DR SB30 9W COB LED 3000K 900 >100 112 – 100 – 1
GCP 4009DR SB40 9W COB LED 4000K 900 >100 112 – 100 – 1
GCP 4009DR SB60 9W COB LED 6500K 900 >100 112 – 100 – 1
GCP 6018DR SB30 18W COB LED 3000K 1800 >100 152 – 100 – 1
GCP 6018DR SB40 18W COB LED 4000K 1800 >100 152 – 100 – 1
GCP 6018DR SB60 18W COB LED 6500K 1800 >100 152 – 100 – 1
GCP 9032DR SB30 32W COB LED 3000K 3200 >100 242 – 100 – 1
GCP 9032DR SB40 32W COB LED 4000K 3200 >100 242 – 100 – 1
GCP 9032DR SB60 32W COB LED 6500K 3200 >100 242 – 100 – 1

.

Body Aluminum
IP Rating IP20
IK Rating IK06
Flame Protection 650°C
Cable Gland –
Cable –
Ral Code 9016
Mounting Type Surface Mounted
Light Source COB Led
Reflector PS
Lens –
Diffuser PS
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 90°
Input Voltage 220-240V AC
Frequency 50-60Hz
Class I
System Lifetime >50.000h
Power Factor >0,90
Operating Temperature -20°C / +45°C
Standards EN60598-2-1,LM79,LM80
DALI ✓
Emergency Kit ✓
Step DIM –
2 Hours Emergency Kit ✓
3 Hours Emergency Kit ✓
Elektriksel Sınıf –
Radar Sensor –

.
