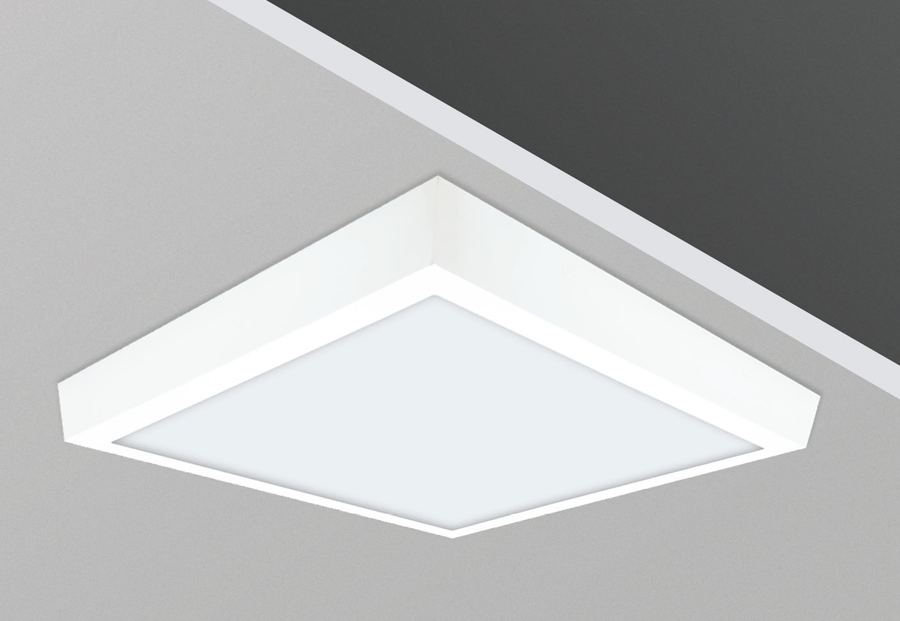

STERA-SM

Surface Mounted Tempered Glass Operating Room Fixtures

– ENEC certified driver
– PF>0.95
– 5 years warranty
– DKP sheet metal body
– +90 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.

SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: STERA-SM Tags: glass, Led, Operating Room Luminaires, sterile environment, Surface Mounted

Product Code Ürün Kodu	Power Güç (W)	Color Temp. Işık Rengi (K)	Lum. Out. Işık Akısı (≥lm)	LumenEff. Verimlilik (lm/W)	Fixture Dimensions Armatür Ölçüleri (mm) a / b / h			Weight Ağırlık (kg)	Pack. Qty Ambalaj Adedi
GCP 3318SH SB30	18W SMD LED	3000K	1800	>90	300	300	65	–	1
GCP 3318SH SB40	18W SMD LED	4000K	1800	>90	300	300	65	–	1
GCP 3318SH SB60	18W SMD LED	6500K	1800	>90	300	300	65	–	1
GCP 3620SH SB30	20W SMD LED	3000K	2000	>90	300	600	75	–	1
GCP 3620SH SB40	20W SMD LED	4000K	2000	>90	300	600	75	–	1
GCP 3620SH SB60	20W SMD LED	6500K	2000	>90	300	600	75	–	1
GCP 3136SH SB30	36W SMD LED	3000K	3600	>90	300	1200	75	–	1
GCP 3136SH SB40	36W SMD LED	4000K	3600	>90	300	1200	75	–	1
GCP 3136SH SB60	36W SMD LED	6500K	3600	>90	300	1200	75	–	1
GCP 6636SH SB30	36W SMD LED	3000K	3600	>90	600	600	75	–	1
GCP 6636SH SB40	36W SMD LED	4000K	3600	>90	600	600	75	–	1
GCP 6636SH SB60	36W SMD LED	6500K	3600	>90	600	600	75	–	1

Body	Sheet Metal
IP Rating	IP65
IK Rating	IK08
Flame Protection	650°C
Cable Gland	PG9
Cable	3x1mm²
Ral Code	9016
Mounting Type	Surface Mounted

Light Source	Mid Power Led
Reflector	–
Lens	–
Diffuser	Temperli Cam
Color Rendering Index (CRI)	>80
Color Temperature	3000K / 4000K / 6500K
Photobiological Risk	RG1
Beam Angle	120°

Input Voltage	220-240V AC
Frequency	50-60Hz
Class	I
System Lifetime	>50.000h
Power Factor	>0,95
Operating Temperature	-20°C / +45°C
Standards	EN60598-2-1,EN62262,EN60529, LM79,LM80
